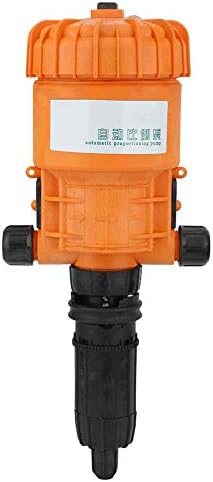

0.2-2% Adjustable Fertilizer Injector,Automatic Fertilizer Injector Water Powered Chemical Liquid Doser Dispenser 10L/h-2500L/h Drip Irrigation Injector for Industry Garden Hose Livestock (Orange)

Price: $151.62
(as of May 17, 2023 17:10:35 UTC – Details)

Description:
The proportional pump is powered by flowing pressure water and does not require any other power facilities, with the proportion of the pump in the hydraulic power for the engine, drive the proportion of the pump piston and connecting rod, liquid additives directly inhaled and dissolved in the water flow

Specification:
Condition: 100% Brand New
Item Type: Automatic Proportional Pump
Material: ABS
Height: Approx. 38cm / 15.0inch
Proportion Range: 0.2%-2% (1:50-1:500)
Flow Range: 10L/h-2500L/h
Working Water Pressure: 0.34-6.2bar
Inlet and Outlet Diameter: 32mm/25mm
Continuous Work: >100T
Water Flow Temperature: 4-35℃

Package list:
1 x Pump
1 x Bracket
1 x Flexible Pipe
1 x Drug Dispenser
1 x Manual
2 x Rubber Gasket
2 x Washer

Notes:
1. The actual product color may deviate from the photo due to light.
2. There may be a slight deviation in the measurement of product.

【WORKING PRINCIPLE】It uses water power of the proportional pump as engine which drives the piston and the connecting rod inside the proportional pump, sucks up the liquid additive directly and makes it dissolve in the water flow.Repeat the up-and-down motion until the effect is achieved that the additive is added to the flowing water evenly and constantly.Any changes in water pressure or flow won’t affect it.
【ACCURATE AND EFFECTIVE】Adopt Reciprocating Dynamic Sealing Technology, has higher accuracy. unique cylinder block and piston motion area design ensures more uniform and effective mixing of liquid and medicine.No matter what happens to the flow rate, the dosage of the solution is always strictly proportional to the amount of water entering the equipment.
【IMPORTANT PARAMETERS】0.2%-2% (1:50-1:500); Working Water Pressure: 0.34-6.2bar;Inlet and Outlet Diameter: 32mm/25mm,Flow range: 10L/h-2500L/h.
【APPLICATION】This product is suitable for wastewater irrigation, equipment maintenance, horticultural flowers, livestock breeding, environmental protection and water treatment, industrial hygiene, vehicle cleaning, food processing, printing industry or other industries that need to be diluted.
