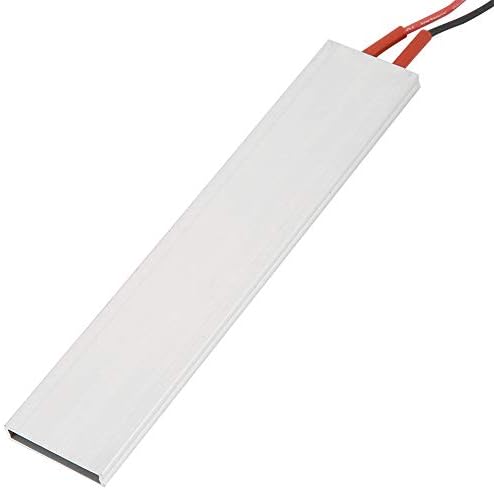

150×28.5mm Air Heater Aluminum Housing PTC Heating Element Plate Thermostatic Heater (12V 220)
$11.34
Price: $11.34
(as of Aug 11, 2022 16:32:59 UTC – Details)
Specification:
Material: Aluminum
Heating Material: PTC Thermistors
Heating Mode: Heat through the flow of air or direct contact with an object
Lead Material: High temperature resistance rubber wire
Wire connection mode: Connect rated voltage, regardless of positive and negative poles
Leading Wire Length: Approx. 15cm / 5.9 inch
Size: Approx. 150×28.5mm / 5.9×1.1in
Weight: Approx. 72g / 2.5 oz
Type:(Optional)
Voltage ( V ) Temperature ()
220 80
220 120
220 220
12 70
12 120
12 220
24 70
24 120
24 220
36 220
48 220
110 220
Package list:
1 × PTC Heating Plate
Note:
The power of PTC heating plate is not fixed. In a certain range, the better the heat dissipation, the greater the power.
Low voltage products not only need to meet their voltage, but also need to pay attention to the current.
If the power supply current can not meet the impact current of the product, the product will be slowly warming up, low temperature, or even short circuit.
Cannot be directly immersed in water or liquid.
The PTC air heater uses a 15 cm long wire to withstand high temperatures. It can be easily used to heat solids and gases.
Heating elements are widely used in air conditioners, electric heating, automobiles, air curtains, humidifiers, dryers, etc. Also used for preheating of automotive and electronic components.
Ceramic insulation, safe to use, long-term dry heat, high reliability.
The structure is simple, easy to install and has a long service life.
The outer casing is made of aluminum and is environmentally friendly and durable.
